Loom Temple Parts

Get a Price/Quote

Product Details:

Tensile Strength High Tensile Strength
Size Standard, Customizable as per requirement
Automation Grade Manual/Semi-Automatic/Automatic
Thread Type Metric, Available in different pitches
Capacity Suitable for high-speed weaving machines
NO. Of Hole 2 to 4 (as per model)
Hardness 50-60 HRC
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Loom Temple Parts Product Specifications

Surface Finish Polished, Anti-corrosive Coating
Features Durable, Precise Fit, Rust Resistance
Dimension (L*W*H) Varies; Standard and made to order
Noise Level Low
Part Type Spare Part
Diameter As per OEM specifications
Mounting Type Bolted/Fitted
Speed Suitable for 300-1200 RPM
Thermal Conductivity Medium
Automation Grade Manual/Semi-Automatic/Automatic
Textile Machine Type Loom
Thread Type Metric, Available in different pitches
Weight 0.5-1.5 kg (varies by model)
Capacity Suitable for high-speed weaving machines
Material High-grade Steel, Hardened Metal Alloy
Hardness 50-60 HRC
NO. Of Hole 2 to 4 (as per model)
Product Type Loom Temple Parts
Spare/Component Type Temple cylinder, Temple sleeve, Pinion, Roller
Tensile Strength High Tensile Strength
Size Standard, Customizable as per requirement
Usage Weaving, Textile Manufacturing

Color Silver/Grey
Operating Temperature Up to 120°C
Impact Resistance Yes
Corrosion Resistance Yes
Packaging Type Carton/Box
Maintenance Minimal, Easy replacement
Compatibility Fits Indian and imported loom models
Life Span Long life with proper maintenance

Product Description

Having years of experience, we are engaged in supplying the best quality Loom Temple Parts. The provided parts are manufactured using top grade raw materials with the aid of ultra-modern machines under the direction of diligent experts. These parts are widely used on a loom to improve the edges of the fabric. Apart from this, the offered Loom Temple Parts can be bought from us at rock bottom prices by our valued clients.

Key Points:

Shiny and smooth surface
Crack resistant
Extended durability
Low maintenance

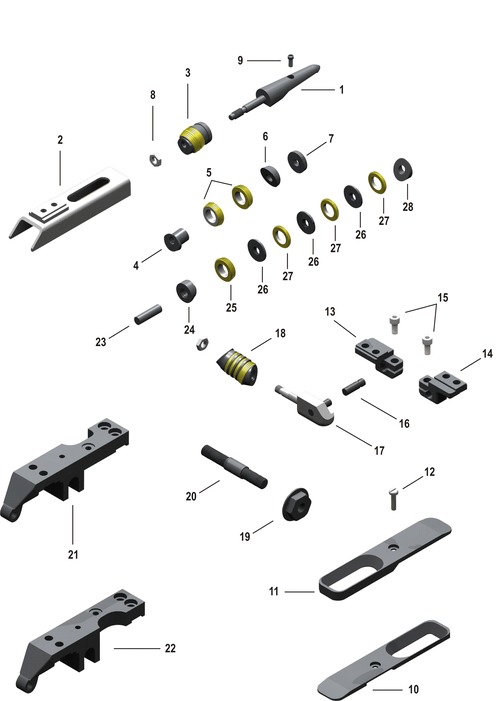

ID:	TK No:	ART No:	Designation:
1	TK2201	911133216	Temple spindle
2	TK2202	911233486	Temple cover short
3	TK2203	912533096	Set temple rings
4	TK2204	911165367	Elliptic end piece
5	TK2205	911165366	Temple ring 150x5x1
6	TK2206	911165368	Bevelled disc 73 G
7	TK2207	911165369	Spacing disc
8	TK2208	911133147	Special Nut M8
9	TK2209	911331500	Screw M16x15
10	TK2210	911333054	Support piece fa
11	TK2211	911333053	Support piece su
12	TK2212	911233195	Special screw
13	TK2213	911133254	Clamping piece SU
14	TK2214	911133253	Clamping piece FA
15	TK2215	921333160	Screw M8X16
16	TK2216	911133198	Hinge Bolt
17	TK2217	912533009	Axle pressure from above
17	TK2218		Axle pressure from above
18	TK2219	912533959	Set of temple ring L:1 mm
19	TK2220	911333394	Nut
20	TK2221	911333147	Bolt M10x68
21	TK2222	911133208	Temple cover support SU
22	TK2223	911133209	Temple cover support FA
23	TK2224	911233199	Tension Bush L:31,5
24	TK2225	911133256	End Ellipse
25	TK2226	911255599	Temple ring 72x3x1
26	TK2227	911233448	Ellipse
27	TK2228	911233458	Temple ring 48x2x1
28	TK2229	911233455	Bevelled end disc

Superior Corrosion and Impact Resistance

Engineered with a polished, anti-corrosive coating and robust hardened metal alloy, these loom temple parts stand up to demanding manufacturing conditions. Their resistance to corrosion and physical impact ensures that the components have a long operational life, even when exposed to challenging environments in textile production.

Tailored Compatibility and Easy Maintenance

Our temple parts fit a wide range of Indian and imported looms and can be customized in size and pitch to suit specific requirements. With minimal maintenance needs and straightforward replacement procedures, users can maintain optimal machine function without complex servicing.

Optimized for High-Speed Weaving

Built to meet the demands of modern textile manufacturing, these parts perform efficiently at speeds ranging from 300 to 1200 RPM. Their precise fit and high tensile strength ensure stable operation, making them suitable for high-speed weaving machines and contributing to improved product quality.

FAQs of Loom Temple Parts:

Q: How do I replace Loom Temple Parts in my weaving machine?

A: Loom Temple Parts are designed for easy replacement and can be fitted or bolted onto loom machines as per OEM specifications. Simply remove the old part, align the new part, and secure it in place using the appropriate mounting method.

Q: What types of loom models are compatible with these temple parts?

A: These temple parts are compatible with both Indian and imported loom models, and are available in standard sizes as well as customizable dimensions to fit specific machine requirements.

Q: When should Loom Temple Parts be inspected or replaced?

A: Regular inspection is recommended during routine maintenance. Replacement is suggested if there are signs of wear, reduced performance, or damage to ensure consistent and efficient weaving operations.

Q: Where can I source these Loom Temple Parts in India?

A: Our Loom Temple Parts are imported and supplied across India. They are packaged securely in cartons or boxes and can be ordered through authorized textile machinery suppliers or importers.

Q: What is the benefit of using temple parts with corrosion resistance and high hardness?

A: Corrosion-resistant and hardened temple parts offer enhanced durability and extended component life. This minimizes downtime, reduces maintenance costs, and ensures reliable operation even in high-speed and demanding textile manufacturing conditions.

Q: How do these temple parts contribute to low noise operation in weaving machines?

A: The precise engineering, polished finish, and anti-corrosive coating of these parts reduce friction and vibration, resulting in quieter operation and improved working conditions in textile facilities.

Q: What are the available part types and their functions in loom machines?

A: Available temple parts include temple cylinders, temple sleeves, pinions, and rollers. Each part is designed for use in weaving and textile manufacturing, assisting the loom in maintaining fabric width and tension during high-speed operations.
